Standard Channel Letter

Order and submit artwork before 4pm PST ships in 2-4 business day. Order after 4pm add 1 business day.

Same Day Turnaround:

Not available for this product.

Available Production Facility

Your orders are dispatched from the closest facility to your ship-to address for speed and savings

     CA Headquarters   CA Sign Department  TX Print Facility      PA Print Facil

Store pickup only available in our California locations

Description

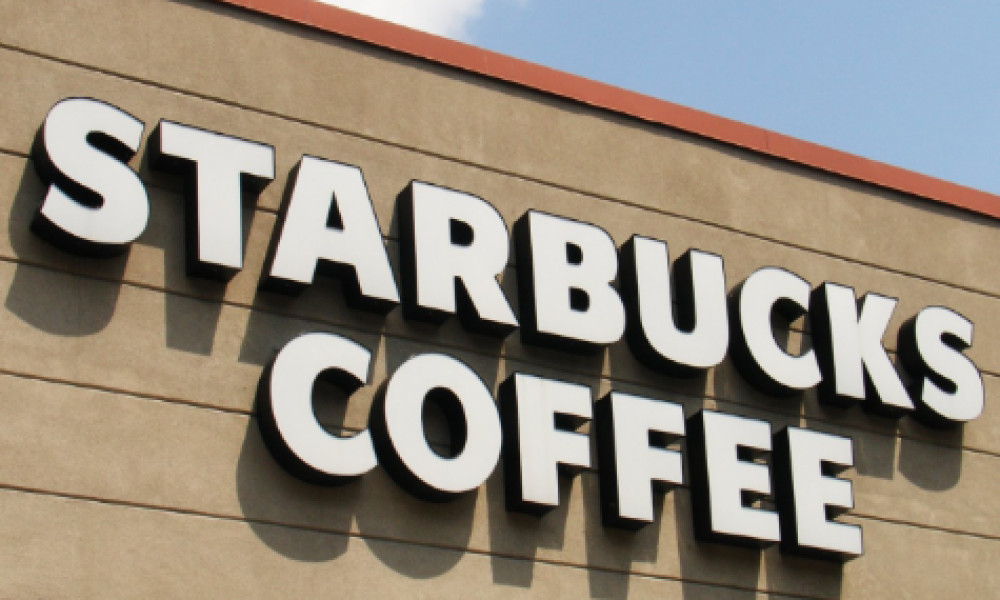

Channel Letters are 3 Dimensional Sign Elements. They are typically displayed on the facade of a building or monument
sign. Channel letters are lit with LED modules which have effective light output and require very little electricity.
Displaying channel letters is an intelligent way to showcase your brand in front of your customers.

• Ready-to-install: Wiring diagrams and installation pattern are included (Installation accessories excluded)
• Certified: UL Listed with Sign Section Labels for Outdoor Installation
• 5 Year Warranty

Buying Options

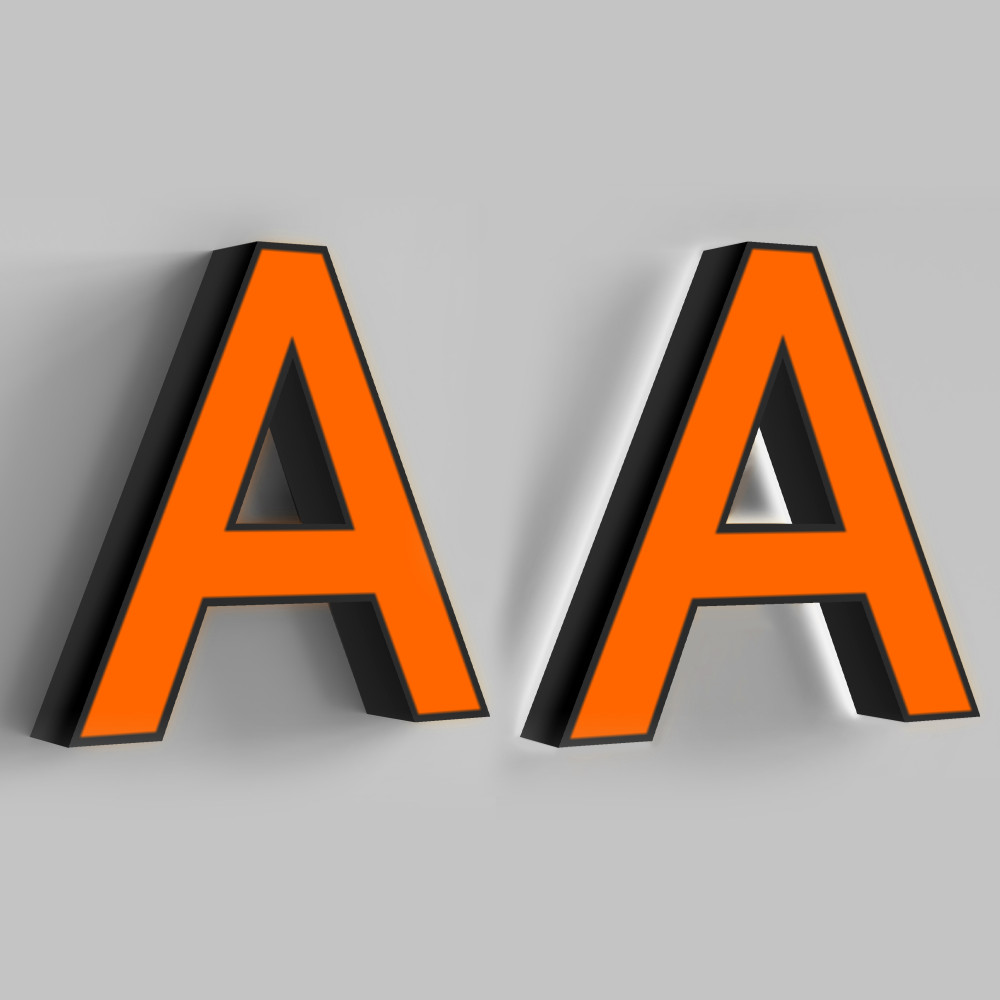

Front Lit

Front and Back Lit

Material Options

Components

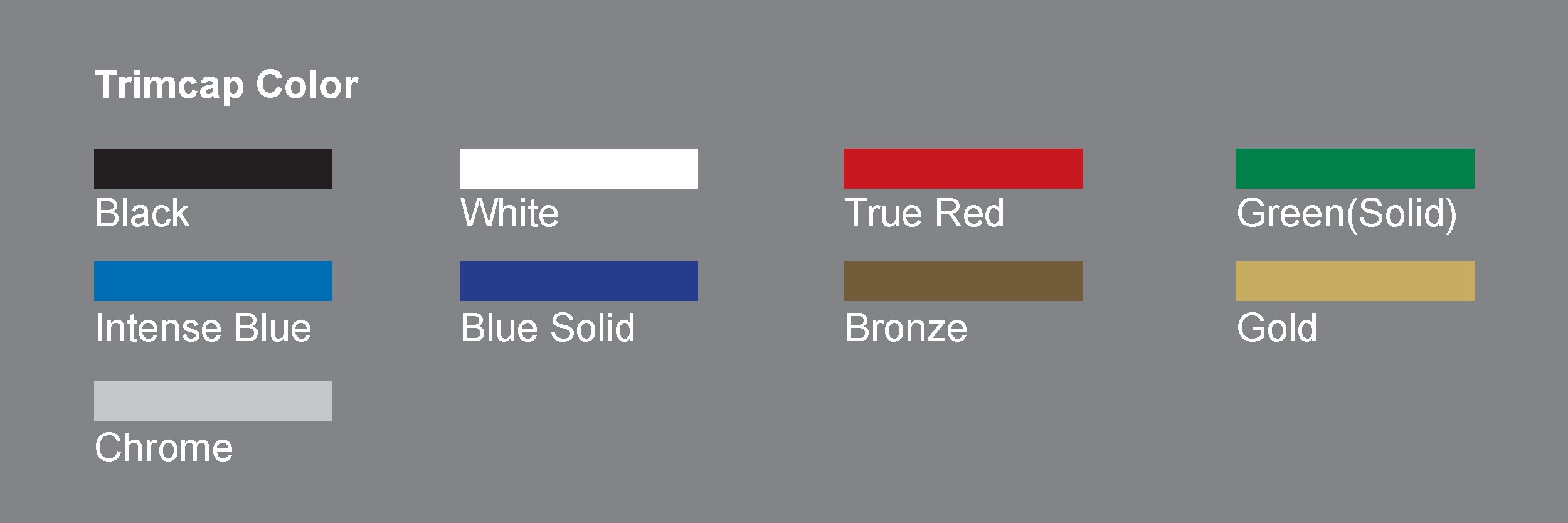

Trim Cap

Trim Caps are plastic molding that surrounds the acrylic face of your channel letter.

Specification

3/4″ or 1″ Jewelite Trim Caps

Return

Returns are the sides bordering the channel letter.

Specification

3″ or 5″ .040″ Alumet, Metals USA High Reflective Aluminum Returns

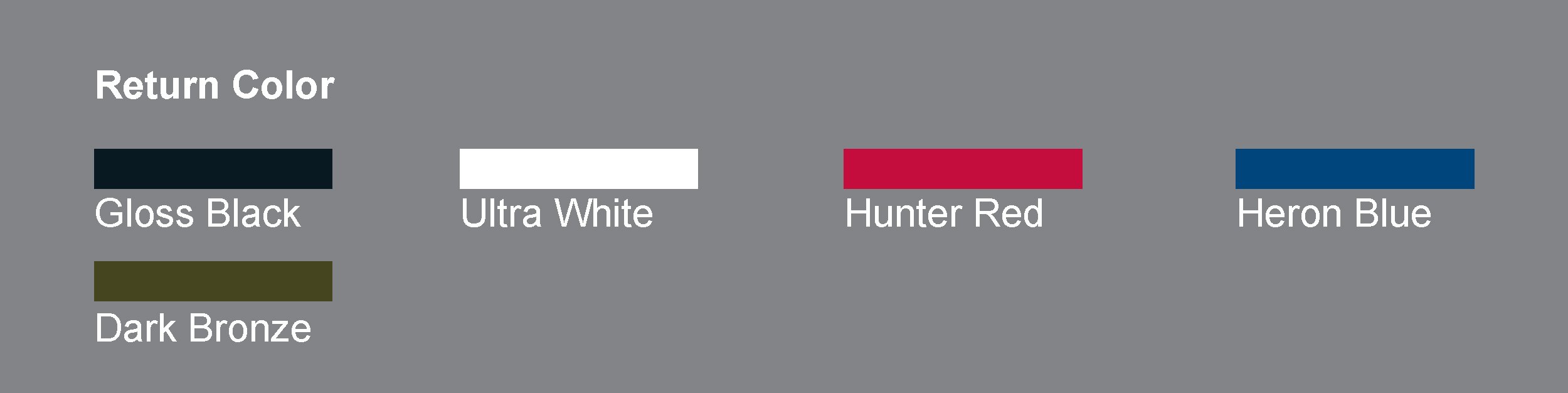

Download Return Color Chart

Face

Acrylic Faces is a slightly transparent plastic on the front face of your channel letter.

Specification

3/16″ Acrylite, Chemcast Acrylic, Palsun Lexan Faces

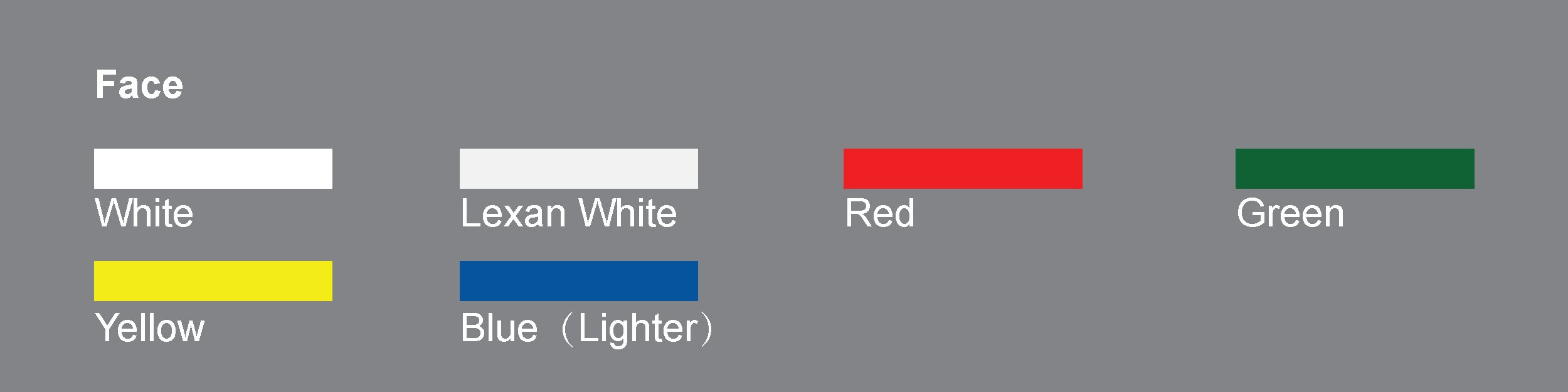

Download Face Color Chart

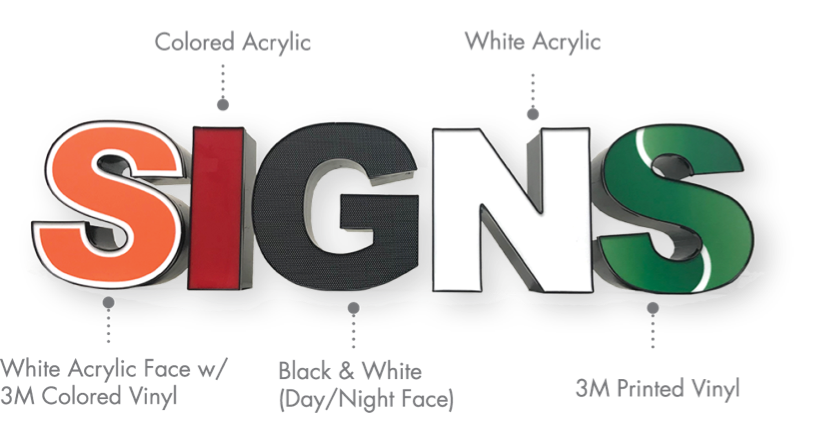

Vinyl

If the color desired is unavailable from out acrylic faces, translucent colored vinyl films can be applied to the face of channel letters.

Specification

3M 3630 Translucent
3635 Day/Night Dual-Color
3635 Blockout Colored Vinyl (Vinyl Colors)
3M IJ8150 Clear Vinyl w/ 8520 Matte Lamination for Digital Print

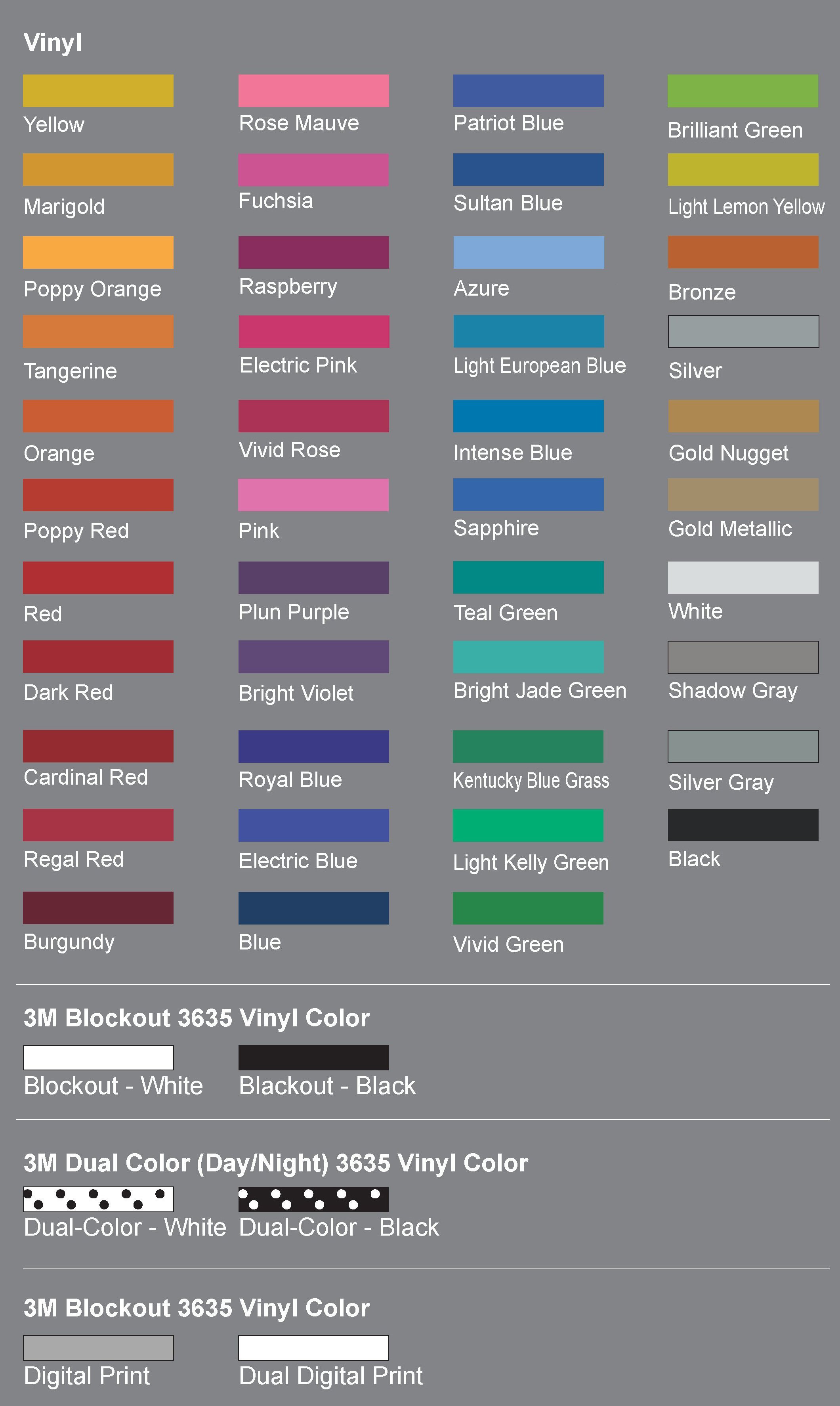

Download Vinyl Color Chart

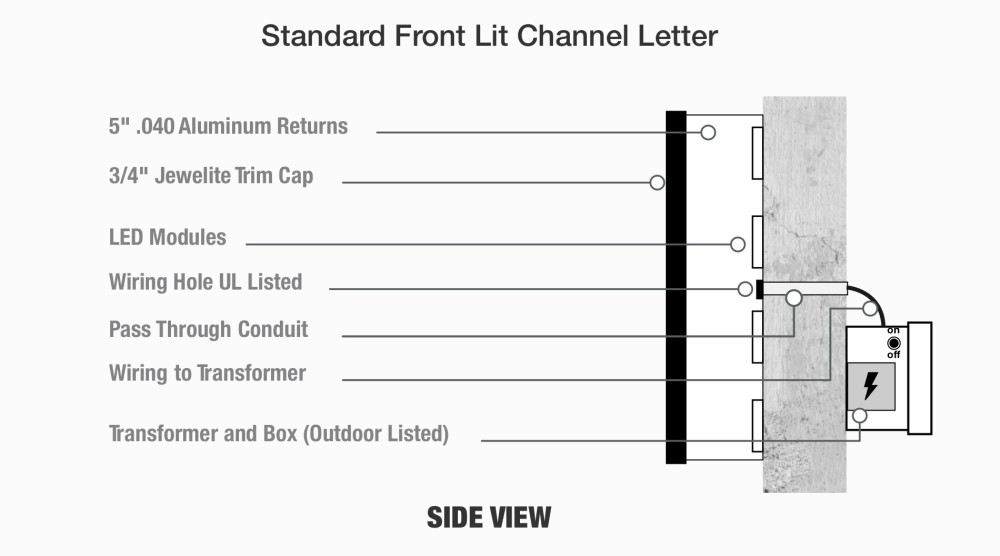

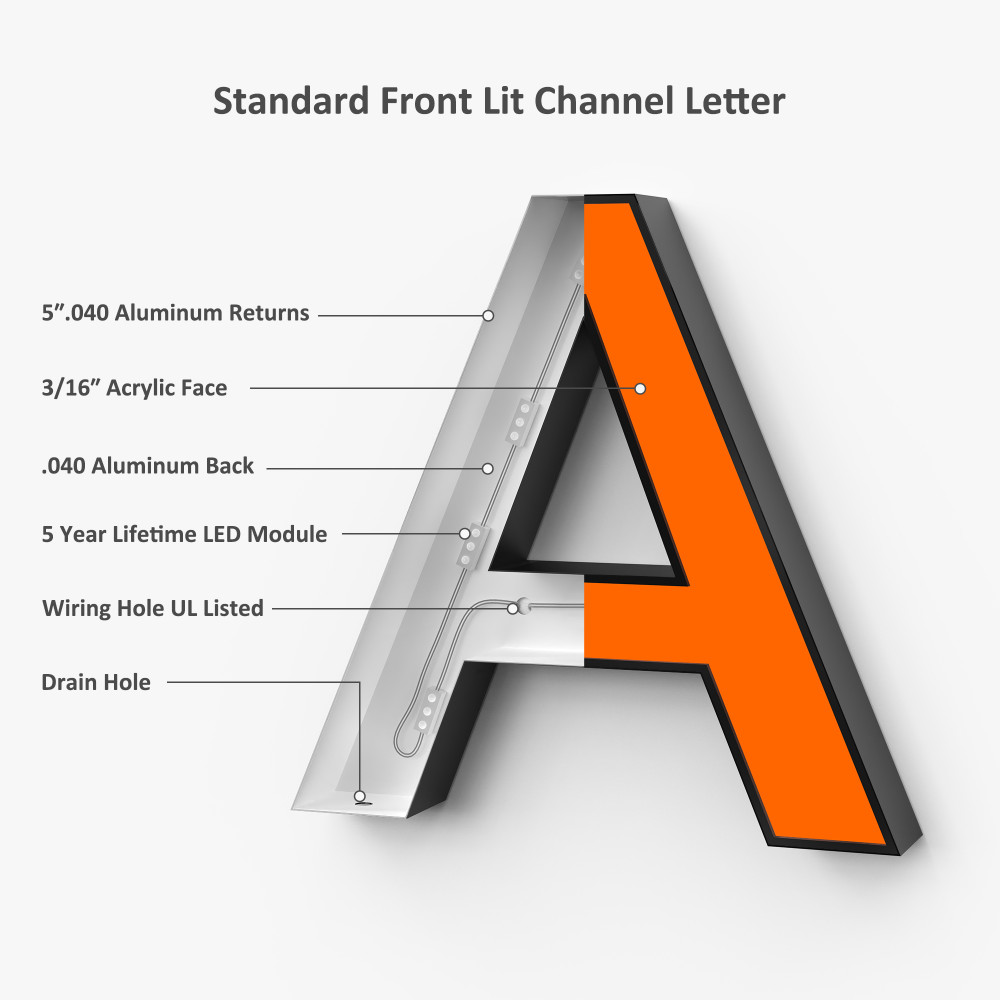

Standard Front Lit

Our standard Front lit channel letters include:

• 3/4″ or 1″ Trim Cap
• 3″ or 5″ .040″ Alumet, Metals USA High Reflective Aluminum Return and Backing
• 3/16 Acrylic Face
• LED Lights
• 3′ Power cord for ground and power.
• Installation Guide and Mounting Pattern

Standard Front/Back Lit

Our standard Front/Back lit channel letters include:

• 3/4″ or 1″ Trim Cap
• 3″ or 5″ .040″ Alumet, Metals USA High Reflective Aluminum Return
• 1/8″ Palsun Clear Lexan Backs
• 3/16 Acrylic Face
• LED Lights
• 3′ Power cord for ground and power.
• Installation Guide and Mounting Pattern

LED Lights

Specification

Mynice High Efficiency, 160° Beam, IP67, 9000K-10500K, 0.7W & 1.2W LED Module (5 Year Warranty)

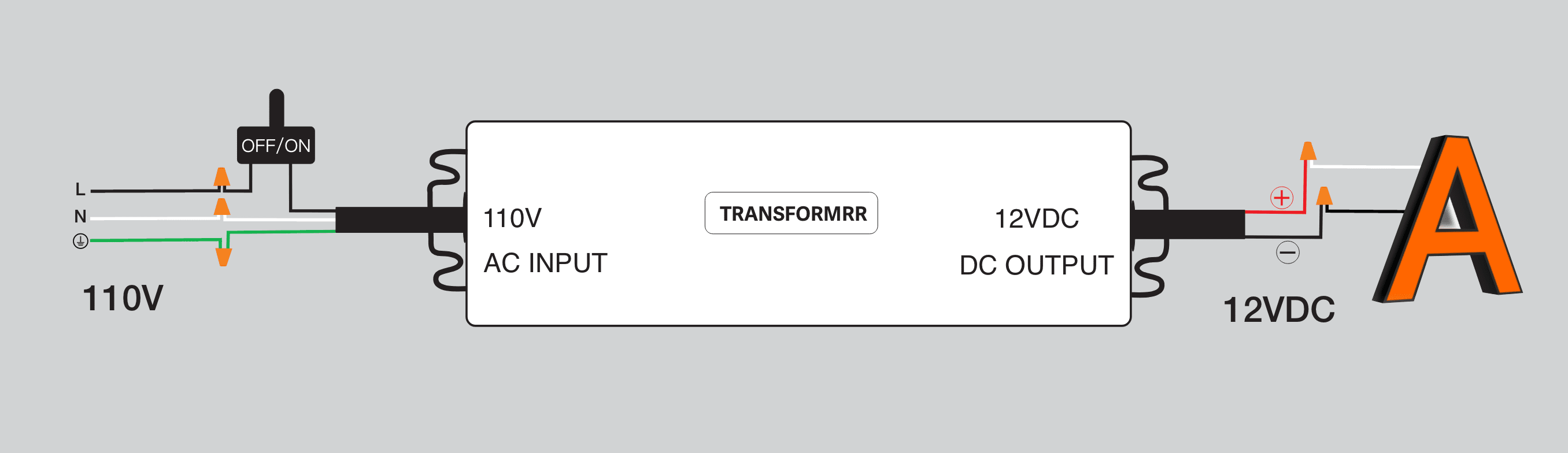

Power Transformer

Specification

Fang Hua HMA-60NU-RX 12V/ 5A 60W, Class 2, Constant Voltage, Constant Current, IP67, Power Supplies (5 Year Warranty)
* For dry location only.
Non-brand Transformer Boxes (3.5”x5.8”x13.5” for 1 transformer and 3.5”x10”x13.5“ for 2 transformers)

Installation Guide

Raceway

Specification

Size:

5.5″ height and 3.5″ depth
Customizable length from 10″ to 46″
For wider applications, multiple segments are used to achieve the desired length

Accessories:

• Raceway base (each segment)
• Raceway cover (each segment)
• End caps x2 (each raceway)
• Connect plates x2 (each segment)
• Mounting brackets x4 (each segment)
• Self-tapping screws x20 (each segment)

Please note that while there are wiring and mounting holes on the channel, we will NOT drill any holes on the raceway and you will have to drill the holes on the raceway yourself.

Raceway Installation Guide:
